DG8FBV
Accu pack, 11 cells Sanyo HR-4/3FAU, 1.2V/ 4.500mAh

Voltage drop after 3 charge and discharge cycles

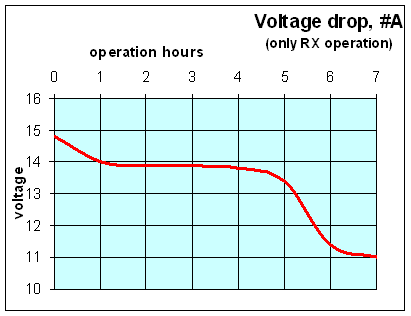

BATTERY PACK #A

Charging with -∆V recognition (-10mV/cell), charging current 2.000 mA

Battery Pack A, ambient temperature ~ 20 C.



RX only (2m), no antenna connected, LCD background light on (continuously),

NF volume closed.

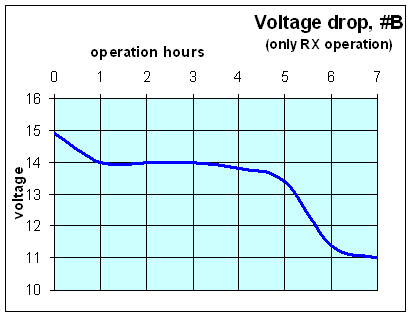

BATTERY PACK #B

Charging with -∆V recognition (-10mV/cell), charging current 2.000 mA

Battery Pack A, ambient temperature ~20 C



RX only (2m), no antenna connected, LCD background light on (continuously),

NF volume closed.
