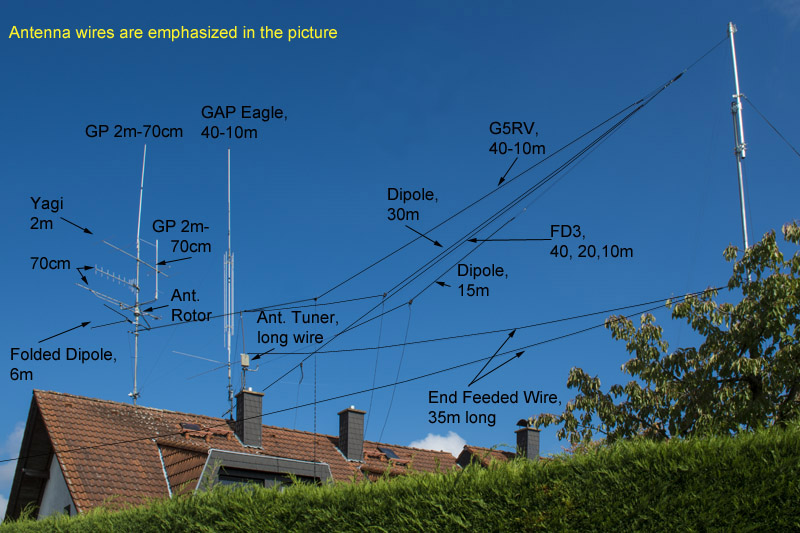

Shortwave and VHF/UHF antennas

Shortwave Antennas

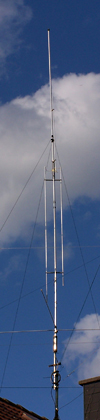

Vertical Antenna:

 40m,  20m, 17m, 15m, 12m, 10m,
 GAP Eagle DX,
 1,5 Kw


 Technical data see-->  Eagle DX

Windom Antenna:  40m, 20m, 10m,
 Fritzel FD-3 COM,
 Total length 21m







 1 Kw SSB/CW

 1:1 Balun

Short Version:
 40m - 10m
 1 Kw SSB/CW

End Feeded Wire:





Automatic Antenna Tuner for end
feeded wire:

 160m - 10m,

 Wire type: DX-Wire Type F, total length 35m (16m + 19m)

 Wire is installed as a horizontal "V".
 Top View:
 L=19m V* L=16m,   *= feeding point
 Antenna wire from

 Automatic Tuner CG3000, outdoor installation
 200 W





HF Portable Antenna  Buddipole, 40m - 6m, 2m

To use the Buddipole with 10 foot / 3m  MFJ-1954 telescopic whips,,,,,see --> here

Folded Dipol:  6m,
 Self build 6m folded Dipol, in reference to
Klaus B÷ttcher,

 description in  CQ-DL 10/2006


Yagi, 18 element, horizontal:   70 cm
Yagi, 10 element, vertical:        70 cm
Yagi,  6 element, horizontal:   2 m
Duo-Band Groundplanes:   2m/70cm,  DIAMOND  X-50 and X-300

Antenna Rotor for VHF/UHF Antennas


Antenna Cable

For VHF/UHF RG213,  for shortwave AIRCELL 7

Mobil HF/VHF/UHF Antenna

Diamond HV7CX for 7/21/28/50/144/430 MHz + 10/14 MHz

Operating Manual:   HV7CX
