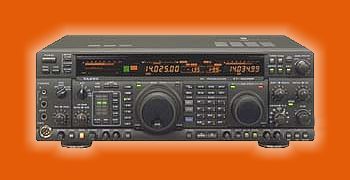

GENERAL

RX Frequency Range:

 100 kHz ~ 30 MHz

TX Frequency ranges:

 160 ~ 10m amateur bands only

Freq. Stability:

 <±10 ppm (-10oC ~ 50oC)
 <±2.0 ppm (0oC ~ 50oC) w/TCXO-4
 <±0.5 ppm (0oC ~ 50oC) w/TCXO-6
Freq. Accuracy:
 <±7 ppm (except FM <±500 Hz)
w/TCXO-4:
 <±2 ppm (FM <±460 Hz)
w/TCXO-6:
 <±0.5 ppm (FM <±460 Hz)
Operating Temperature Range:
 -10oC ~ 50oC
Emission Modes:
 LSB, USB, CW, AFSK, FSK, AM, FM
Frequency Steps:
 0.625/11.25/2.5/5/10 Hz for SSB, CW, RTTY & Packet; 100 Hz for AM and FM
Antenna Impedance:
 50 Ohm Unbalanced
Supply Voltage:
 90 ~ 129, 180 ~ 258 VAC, 50/60 Hz and 13.5 VDC
 DC-only model also available (FT-1000MP/DC)
Power Consumption (approx.):
 2.4A RX (No Signal) 2.8A RX (signal)
 19A TX (100 Watts)
Dimensions (WHD):
 410 x 135 x 347 mm
 (16.4 x 5.4 x 13.9 in)

Weight (approx.):

 15 kg. (33 lbs.)
TRANSMITTER

Power Output:

adjustable up to 100 watts
 (25 watts AM Carrier)

Duty Cycle:

 100% @ 50 watts, 100% @ 100 watts
 (FM & RTTY, 3-minute TX)
Modulation Types: SSB:
 J3E Balanced, Filtered Carrier
AM:
 A3E Low level (early stage)
FM:
 F3E Variable Reactance
AFSK:
 J1D, J2D Audio Frequency Shift Keying
Maximum FM Deviation:
 ±2.5 kHz
FSK Shift Frequencies:
 170, 425 and 850 Hz
Packet Shift Frequencies:
 200, 1000 Hz
Harmonic radiation:
 at least 50dB below peak output
SSB carrier suppression:
 at least 40dB below peak output
Undesired sideband suppression:
 at least 50dB below peak output
Audio response (SSB):
 not more than than -6dB from 400 to 2800 Hz
3rd-order IMD:
 -31dB @ 100 watts PEP, or better
Microphone impedance:
 500 to 600 Ohm
RECEIVER
Circuit type:
 quad-conversion superheterodyne
 (triple conversion for FM)
Intermediate Frequencies:
Main RX Sub RX
70.455 MHz 47.21 MHz
8.215 MHz 455 kHz
455 kHz
10.25 kHz (EDSP)
Sensitivity (For 10 dB S/N):
IPO ON OFF OFF OFF
Freq ->

Mode

150 ~ 250 kHz 250 ~ 500 kHz 0.5 ~ 1.8 MHz 1.8 ~ 30 MHz
SSB, CW (2.4 kHz) 5 uV 4 uV 2 uV 0.25 uV
AM (6 kHz) 40 uV 32 uV 16 uV 2 uV
29 MHz FM (12 dB SINAD) - - - 0.5 uV
Selectivity (-6 / -60 dB):
Button Modes Min -6dB BW Max -60 dB BW
2.4 kHz all except FM 2.2 kHz 4.2 kHz
2.0 kHz all exc. AM, FM 2.0 kHz 3.6 kHz
500 Hz CW, RTTY, Packet 500 Hz 1.8 kHz
250 Hz CW, RTTY 250 Hz 700 Hz
- AM (Wide) 4 kHz 14 kHz
FM 8 kHz 19 kHz
Dynamic Range:
 108 dB (@ 50 kHz, 500 Hz BW, RF amp off)
Squelch sensitivity:
1.8 ~ 30 MHz:
 (CW, SSB, AM): <2.0uV
28 ~ 30 MHz:
 (FM): <0.32uV
IF rejection (1.8 ~ 30 MHz):
 80 dB or better (Main RX)
 60 dB or better (Sub RX)
Image rejection: (1.8 ~ 30 MHz):
 80 dB or better (Main)
 50 dB or better (Sub)
IF shift range:
 ±1.12 kHz
Max audio output:
 1.5W into 4 Ohms with < 10% THD
Audio output impedance:
 4 to 8 Ohm
